Across many industries, stainless steel sanitary pipe fittings are critical for keeping process systems hygienic. Components such as ferrules, clamps, sanitary valves, and fittings are made to maintain clean fluid paths. They significantly reduce contamination risks and make cleaning easier.
CSI Sanitary Fittings
The choice of Hygienic Fittings and Ss Sanitary Fittings has a direct effect on product safety, system uptime, and adherence to regulations. Material grade, surface finish, and connection compatibility are essential selection factors. These details determine how easily the system can be cleaned, validated, and maintained.
Reliable suppliers and detailed catalogs are vital for operations teams to select the right parts. Brands like CSI and distributors such as Installation Parts Supply offer essential information. Their catalog listings, lead times, and customer reviews can support purchasing decisions for Sanitary Valves And Fittings.
Essential Takeaways
- Stainless Steel Sanitary Pipe Fittings are necessary for contamination control in clean systems.
- Material grade and surface finish affect cleanability and corrosion resistance.
- Compatible Hygienic Fittings limit downtime during upgrades, changeovers, and maintenance.
- Catalogs and reviews from CSI and Installation Parts Supply help dependable sourcing.
- Choosing the right Sanitary Valves And Fittings protects product quality and regulatory compliance.
Overview Of Sanitary Pipe Fittings And Hygienic Fittings For Clean Systems
Sanitary systems depend on components designed for safety and efficiency. A sanitary fitting should provide smooth surfaces, tight seals, and accessible cleaning points. These features are critical for preventing contamination and supporting clean-in-place and sterilize-in-place routines.
Definition And Purpose Of Sanitary Fittings
Sanitary fittings, also known as hygienic fittings, provide crevice-free connections. That design limits bacterial growth and helps maintain product purity during transfer and processing. Their design supports faster cleaning while reducing cross-contamination risk.
Where Hygienic Fittings Are Used
Food processors use hygienic fittings to support safety standards and reduce spoilage risk. Beverage manufacturers use these fittings to protect flavor, clarity, and shelf life. Pharmaceutical plants choose fittings that meet strict regulatory requirements.
Biotech facilities need precise sanitary connections for cell culture and fermentation. These industries prioritize traceability, repeatable cleaning, and compatible materials.
Why Stainless Steel Is Preferred For Sanitary Applications
Stainless steel is commonly selected for its corrosion resistance, mechanical strength, and cleanability. Grades such as 304 and 316L can withstand cleaning chemicals, process fluids, and elevated temperatures. They also allow surface finishes such as electropolishing and low Ra values.
Stainless components help reduce bacterial growth and extend service life during aggressive cleaning cycles. Tri Clover Sanitary Fittings and other standardized interfaces improve assembly, inspection, and maintenance in hygienic systems.

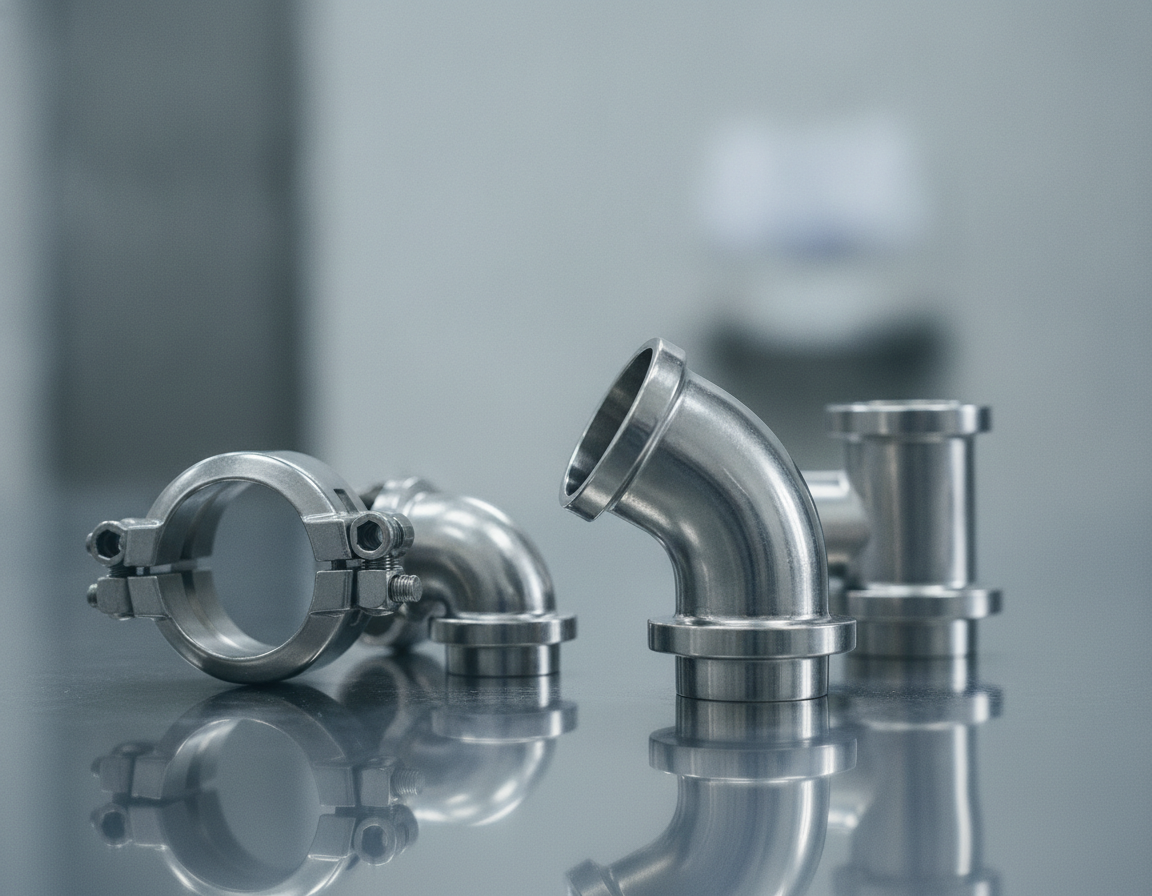

Stainless Steel Sanitary Pipe Fittings
In modern food, beverage, and pharmaceutical systems, stainless steel sanitary pipe fittings are widely required. The right material, product type, and surface finish are key to reducing contamination risk and making cleaning easier. This guide will cover common grades, typical component families, and finish options for hygienic performance.
Sanitary Stainless Steel Materials And Grades
Type 304 stainless steel is known for its corrosion resistance and mechanical strength, making it suitable for general processing lines. It is commonly used for tanks, structural supports, and areas where product-contact risk is lower.
Type 316L provides superior resistance to chloride pitting and crevice corrosion. Pharmaceutical companies frequently choose 316L for wetted parts due to its low carbon content, which prevents sensitization during welding.
Matching grades across components helps maintain corrosion resistance and prevents galvanic issues when parts are joined. Specifying 304 or 316L early in design helps control procurement of SS Sanitary Fittings and related parts.
Sanitary Fitting Product Types And Functions
Ferrules are the basic connection points for butt-weld and weld-in assemblies. They are available in 304 or 316L with polished IDs to match process piping.
Two-piece clamps, often called Tri-Clamp or Tri-Clover style clamps, allow quick assembly and disassembly for cleaning. Couplings and sanitary weld fittings ensure smooth lines and weld-ready connections.
Sanitary Hose Fittings and Sanitary Weld Fittings connect flexible transfer lines and permanent piping. Sanitary Valves And Fittings manage flow while maintaining cleanable contours. Designing a system with compatible SS Sanitary Fittings reduces downtime and leak risks.
Surface Finish And Cleanability Requirements
Surface roughness directly influences how residues cling to metal surfaces. A 32RA internal finish is a common spec that balances cost and cleanability for most food and beverage applications.
Electropolishing further improves the metal and enhances passivity. This treatment helps reduce microbial harborage and improves corrosion resistance in aggressive environments.
Specifying matching finishes across ferrules, clamps, valves, and weld fittings supports hygienic integrity. When components share 32RA or electropolished surfaces, cleaning validation becomes more repeatable.
| Component | Common Material | Standard Finish | Primary Use |
|---|---|---|---|
| Ferrules butt weld / weld-in | 304 stainless or 316L stainless | 32RA internal/external finish | Pipe-end transitions and welded joints |
| Two-piece Tri-Clamp clamps | 316L preferred | 32RA finish or electropolished surface | Quick-release sanitary connections |
| Weld fittings and couplings | 304 and 316L stainless options | 32RA with optional electropolish | Welded joins and directional changes |
| Sanitary Hose Fittings | 316L common | Electropolished for product contact | Flexible connections, transfer lines |
| Sanitary valves and process fittings | 316L commonly used for product-contact areas | Polished internal surfaces | Flow control with hygienic profiles |
Tri Clover Fittings, Tri-Clamp Fittings Catalog, And Triclover Fitting Options
Tri Clover Pipe Fittings follow strict dimensional standards that support cross-manufacturer compatibility. Standards such as DIN 32676 and DIN 11864-3A define ferrule-face geometry and clamp interfaces. This supports sanitary lines remain leak-free and easy to maintain. They also simplify Triclover Fittings selection for food, beverage, and pharmaceutical applications.
When reviewing a Tri-Clamp Fittings Catalog, focus on size range, material grade, pressure ratings, and surface finish. Catalogs often list two-piece clamps from 0.25″ to 4″, including single-pin options and matching gaskets. Ferrules are detailed with length and finish, with common options being 304 and 316L, finished to 32RA for enhanced cleanability.
Key items in catalogs feature clamps, ferrules, and gasket sets, sized in inches or DN. Small two-piece clamps may start under ten dollars, while larger clamps often fall in the low double-digit range. Each Triclover Fitting entry should show OAL, ID/OD finish, and compatible gasket material. This helps ensure the correct part is chosen at the time of order.
High-pressure applications may require double-bolt or heavy-duty two-piece clamps. These clamps feature a 304 stainless body with brass nuts, balancing strength and corrosion resistance. For critical process lines, select high-pressure clamps based on rated clamp force and confirm compatibility with existing Tri Clover Fittings to avoid mismatches.
The choice of material affects both longevity and cleaning performance. 316L ferrules provide better chloride resistance in harsh or chemically aggressive environments. Ensure the Tri-Clamp Fittings Catalog lists both ferrule metallurgy and clamp construction. This supports the selection of Tri Clover Pipe Fittings based on process conditions and application requirements.
Spec sheets should provide clamp size charts, ferrule dimensions, and part numbers to streamline procurement. A well-organized catalog makes Triclover Fittings replacement faster and helps minimize downtime. Choose suppliers that publish detailed specifications for each Tri Clover Fitting so interchangeability across brands can be confirmed.
Sanitary Connections, CSI Sanitary Fittings, And Compatibility
Sanitary connections are essential for joining pipes, valves, pumps, and equipment in clean systems. The right joint type is important for maintaining hygiene and efficiency. This section reviews common connection styles, brand interchangeability, and supplier reliability feedback.
There are several connection types, including clamp connections like Tri-Clamp, butt-weld and socket-weld fittings, threaded links, and sanitary hose fittings. Each style has different advantages for assembly speed, cleanability, and leak risk.
Clamp connections are preferred for their quick assembly and ease of disassembly for cleaning. Welded joints provide the smoothest internal profile for CIP and SIP routines. Threaded fittings are generally more suitable for low-risk or utility applications where product contact is not critical. Sanitary hose fittings need matched ferrules and a secure Sanitary Coupling to help prevent leaks.
Brand compatibility is essential when mixing components. CSI Sanitary Fittings and Csi Fittings use common standards like Tri-Clamp and DIN, making them generally interchangeable with other manufacturers. Steel & O’Brien publishes spec sheets that confirm compatibility with major Tri-Clamp systems when standards are followed.
To confirm compatibility, match the nominal size, sealing face, material grade, and surface finish. Check datasheets for standards such as DIN 32676 and DIN 11864. Mismatched finishes or grades can create corrosion or trap product residues.
Customer feedback provides practical insights into supplier reliability. Reviews for CSI mention consistent part quality and quick shipping, with some buyers experiencing next-day delivery on stock items. Others praise the responsive communication after order inquiries.
When comparing suppliers, review lead times, documented quality, return policies, and after-sale support. Reliable shipping and clear spec sheets limit downtime and avoid costly returns when purchasing Sanitary Connections, CSI Sanitary Fittings, or components from Steel & O’Brien.
| Sanitary Connection | Recommended Application | Cleanability | Compatibility Notes |
|---|---|---|---|
| Clamp-style sanitary connection | Lines requiring fast access for cleaning | High; gasketed seal easy to clean | High when size and sealing face match; CSI fittings fit most brands |
| Butt-weld and socket-weld fittings | Permanent process runs requiring smooth internal bores | Very high after proper polishing | Cross-brand fit depends on matching standards and dimensions |
| Threaded sanitary-style connection | Non-product-contact lines, utilities | Moderate; threads can trap residue | Use carefully and confirm grade, thread style, and finish |
| Hose with Ferrule | Flexible transfer lines and temporary connections | Good if ferrule and clamp are matched | Needs the correct ferrule profile and Sanitary Coupling to prevent leaks |
Sanitary Pipe Fittings Stainless And SS Sanitary Fittings Selection Guide
Choosing the right sanitary components requires a few focused steps. This guide helps match size, material, finish, and gasket type to process requirements. Use the checks below to reduce downtime and support hygienic performance.
Begin with size and designation. Confirm DN and TC markings, then verify DN-to-TC inch equivalents before ordering. Common catalog matches include DN20/DN25/DN32/DN40/DN50/DN65/DN100 mapped to 0.25″–4″ Tri-Clamp sizes. Check mating surfaces, gasket groove styles, and flange faces to ensure compatibility.
Material selection is a major part of sanitary fitting specification. For many food and beverage lines, 304 stainless meets strength, cleanability, and cost requirements. For pharmaceutical, chloride-exposed, or aggressive-cleaning processes, choose 316L for better corrosion resistance and weldability. Many suppliers list 316L ferrules and fittings as standard choices for harsh service environments.
Surface finish and gasket selection affect cleanability, seal life, and validation results. Specify finish targets such as 32RA or electropolished surfaces. Match gasket materials like EPDM, PTFE, or silicone to temperature, chemical exposure, and product contact requirements. Confirm gasket cross-section, clamp type, and clamp pressure to help prevent leaks.
Review process pressure and clamp type. Standard clamp clamps handle everyday sanitary services. High-pressure service may require reinforced clamps, double-bolt designs, or specialized nuts and hardware. Review pressure ratings in the catalog and select clamps rated above operating pressure for safety margin.
Copper Tri Clamp Fittings may be considered for specialized or niche applications. Copper tri clamp fittings offer conductivity and antimicrobial benefits in select systems. Before pairing copper with stainless lines, validate compatibility with cleaning agents, product chemistry, and dissimilar-metal corrosion risk.
Final checks avoid costs. Compare catalog part numbers against DN TC inch equivalents, confirm material grade markings, and request mill test reports when needed. Keep records of gasket type, finish specification, and clamp pressure to streamline spare parts ordering and maintenance.
Best Practices For Installing And Maintaining Sanitary Coupling And Sanitary Weld Fittings
Ensuring the cleanliness and reliability of sanitary connections is essential. Follow specific steps for assembling tri-clamp assemblies and welded joints to avoid leaks and contamination. Keeping detailed records of materials, finishes, and maintenance is necessary for traceability and audits.
Best-practice assembly steps
Begin by thoroughly cleaning ferrule faces and checking gaskets for any defects. Place the gasket between the ferrule faces, ensuring the sealing surfaces are aligned. Next, install the clamp, hand-tighten it, and then apply specified torque using a calibrated wrench. For high-pressure applications, use double-bolt clamps with brass nuts and adhere to the recommended torque to prevent over-compression.
Sanitary Weld Fittings guidance
For weld joints, prepare tube ends to the specified Ra finish before welding. Use inert gas purging to reduce oxidation on 316L stainless steel. After welding, inspect weld contour, internal profile, and surface smoothness. If needed, rework rough spots through controlled grinding and electropolishing to restore low roughness and maintain hygiene.
Routine sanitary maintenance
Implement CIP and SIP cycles as required by the process. Inspect ferrule faces, clamps, and gaskets after thermal cycles, production runs, and scheduled cleaning. Replace gaskets if they show signs of hardening, extrusion, or permanent deformation. Always verify clamp torque and alignment after each maintenance activity.
Common issue troubleshooting
When leaks appear, first check clamp seating, gasket condition, and ferrule alignment. Misaligned clamps can lead to uneven compression and leaks. To fix, loosen, realign, and retighten to the specified torque. For gasket extrusion or failure, ensure the correct durometer and material are used, and confirm the groove dimensions match the ferrule specifications.
Addressing surface damage
Surface damage such as scratches, pitting, or crevice corrosion can hold microorganisms. Minor scratches can be polished out and then electropolished to restore the Ra levels. Replace components if pitting penetrates the surface or if repair polishing would remove too much material.
Documentation and maintenance records
Keep detailed records of material grades, surface finishes, gasket types, clamp models, and service dates. Maintain calibration records for torque tools and welding equipment. Accurate records support compliance, audits, validation, and faster troubleshooting.
| Maintenance Task | Frequency | Primary Action | Notes |
|---|---|---|---|
| Clamp torque verification | After installation and on a monthly schedule | Check with calibrated torque wrench | Reference the correct torque table for each coupling size |
| Gasket condition check | Every 3–12 months or on failure | Inspect for cuts, hardening, extrusion | Replace only with compatible gasket material |
| Surface finish inspection | Every quarter or after welding | Measure Ra, inspect visually | Electropolish if Ra exceeds spec for hygienic areas |
| Weld inspection | After installation, then yearly | Inspect weld shape, smoothness, and defects | Rework and polish fittings when defects appear |
| CIP/SIP validation | Per process cycle | Monitor time, temperature, concentration | Document results for validation and regulatory review |
Where To Buy Sanitary Fittings: Catalogs, CSI Fittings, And Installation Parts Supply
A detailed catalog review is a key first step. Look for a Sanitary Fittings Catalog that lists material grade, surface finish, dimensions, and pressure rating. It should also mention standards like DIN 32676 or DIN 11864-3A. Before ordering, confirm item codes, stock status, lead times, and compatibility to avoid delays.
When reviewing a Tri-Clamp Fittings Catalog, check clamp type, gasket compatibility, and dimensional specs. Check if ferrules and fittings have surface finishes like 32RA or electropolished. A detailed catalog helps make matching gaskets and clamps easier during assembly.
Evaluate Csi Fittings by reading independent reviews, checking supplier lead times, and comparing published specifications. Many buyers report fast shipping for common parts and responsive service for quality or order questions. Confirm return terms for precision components to protect tight-tolerance projects.
Use the following example listing to estimate market pricing and compare common stocked sizes. These prices reflect typical catalog-style entries and help set realistic procurement budgets.
| Catalog Item | Size | Grade | Listed Finish | Catalog Price (USD) |
|---|---|---|---|---|
| Single-pin two-piece clamp | 0.25″–0.75″ | 304 stainless | Standard | Approx. $3.91 |
| Single-pin two-piece clamp | 1″ | 304 stainless | Standard catalog finish | $4.91 |
| Two-piece single-pin clamp | Two-inch size | Type 304 stainless steel | Standard catalog finish | Approx. $5.99 |
| Single-pin two-piece clamp | 2.5″ | Type 304 stainless steel | Standard catalog finish | $6.93 |
| Two-piece single-pin clamp | 3 inch | 304 | Standard catalog finish | 7.54 USD |
| Two-piece single-pin clamp | 4 inch | 304 | Standard catalog finish | $9.16 |
| Ferrule TC | 2″ — 1.125″ OAL | Type 316L stainless steel | 32RA ID/OD | Approx. $4.24 |
| Ferrule TC | 2″ size, 1.125″ overall length | Type 304 stainless steel | 32RA internal and external finish | Approx. $4.06 |
| TC sanitary ferrule | 3 inch | Type 316L stainless steel | 32RA internal and external finish | $6.15 |
| High-pressure sanitary clamp | 1.5 inch | 316 | Polished finish | 12.93 USD |
| High-pressure double-bolt clamp | Two-inch size | Type 316 stainless steel | Polished sanitary finish | $14.62 |
| Double-bolt high-pressure clamp | 3″ | 316 stainless | Polished sanitary finish | $20.26 |
Installation Parts Supply is a U.S.-based source for sanitary valves, ferrules, and clamps. Use their online listings to confirm availability, surface finishes, material grades, and exact pricing for specific Tri-Clamp Fittings Catalog items. Before purchasing, review product pages to cross-check pressure ratings, gasket materials, and fitting compatibility.
When sourcing parts, prioritize catalogs that show clear specs for 304 versus 316L, specify surface finish, and cite conforming standards. A targeted Sanitary Fittings Catalog search can streamline procurement and reduce returns on critical process components.
Final Thoughts
Stainless Steel Sanitary Pipe Fittings are critical for maintaining cleanliness in various industries. The choice between 304 and 316L materials, along with surface finishes like 32RA or electropolishing, supports cleanability. These choices can significantly reduce contamination risk. Ensuring that Tri Clover Fittings and other components meet standards like DIN 32676 is important for tight Sanitary Connections and easy interchangeability.
When selecting fittings, consider the material, finish, and connection type. This includes Tri-Clamp, weld, hose, or threaded connections, based on pressure, product contact, and regulatory requirements. Use high-pressure clamps where process pressure or safety margins require them. Consistency in gaskets, clamps, and ferrules reduces leaks and simplifies maintenance. Proper installation and regular cleaning extend fitting life and support compliance with hygiene standards.
Catalogs provide useful pricing for two-piece clamps, ferrules, and high-pressure options. This supports balanced cost and reliability in procurement decisions. When searching for where to buy sanitary fittings, focus on reputable U.S. suppliers. They should list product specifications, finishes, and standards to ensure compatibility with CSI and other branded fittings.
Following these guidelines improves system design and upkeep. Clear specifications, consistent materials, and reliable sources help minimize downtime. That helps protect product quality in hygienic processing environments.
