Compression fittings deliver a reliable method to connect copper pipes, eliminating the need for soldering or torch heat. A Copper Compression Union works with a body, ferrule, and nut, and the seal is made when the nut is secured with a wrench. This feature makes the Compression Fitting 3/4 and the 3/4 Copper Compression Fitting common picks among both professional plumbers and DIY enthusiasts.

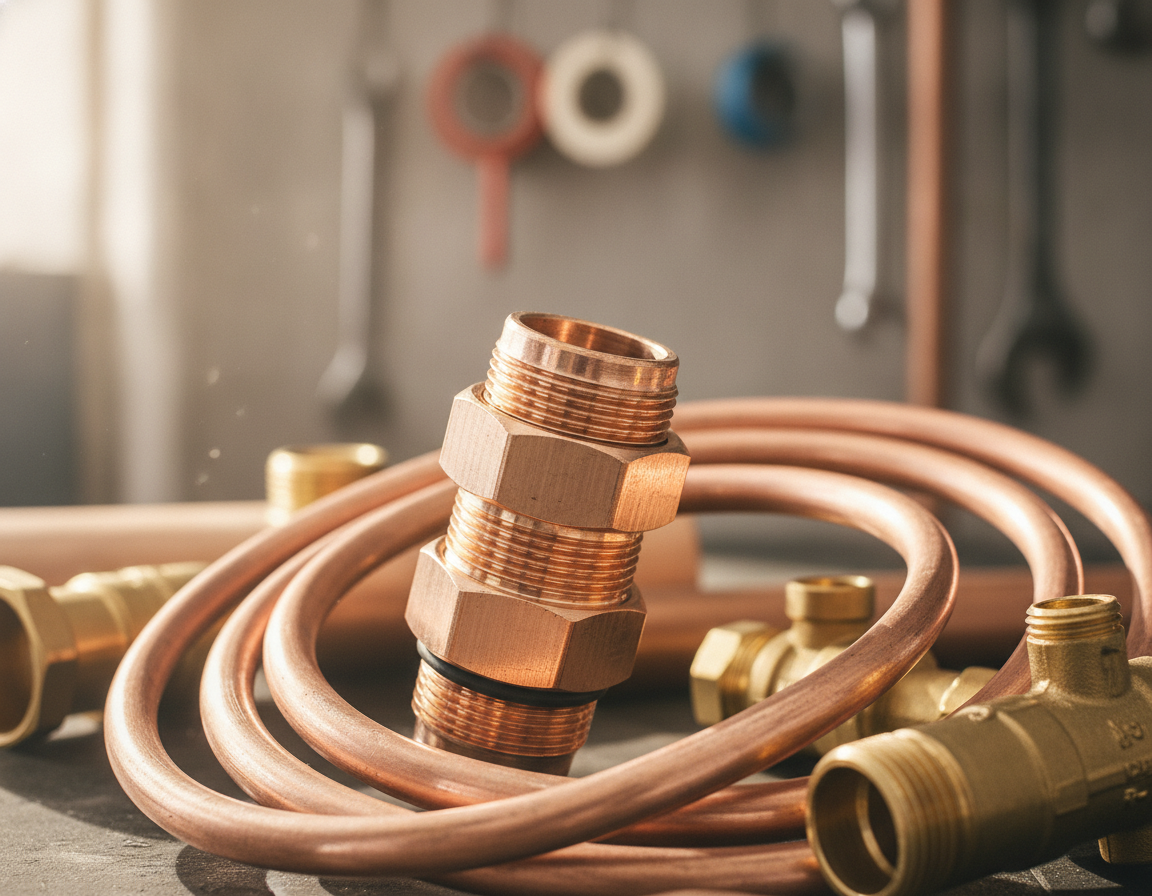

3/4 Compression Fitting
These unions work well for residential and commercial projects, including supply piping and instrumentation runs. Installation Parts Supply frequently carries 3/4 Compression Fitting Copper and 3 4 Compression Fittings in various materials like brass, copper, and stainless. As the nut tightens, the ferrule deforms between the tapered body and nut, gripping tubing such as annealed copper or compatible thermoplastic tube.
Essential Takeaways
- A Copper Compression Union joins copper pipe without solder or torch heat.
- Compression Fitting 3/4 and 3/4 Copper Compression Fitting are popular sizes.
- Installation Parts Supply typically stocks 3/4 Compression Fitting Copper and 3 4 Compression Fittings.
- Brass bodies and ferrules offer strength and corrosion resistance.
- Wrench-tightening the nut drives the ferrule to form a leak-tight seal.
Understanding Copper Compression Union: Design And Components
A Copper Compression Union is a three-piece fitting that couples tubing without solder. These unions are used in plumbing, HVAC, refrigeration, gas distribution, and instrumentation systems. The reason is simple: the union forms a tight mechanical compression seal. The 3 4 Copper Compression Union is commonly used in residential and light commercial settings.
Copper Compression Union Uses And Basics
A compression union joins two tube ends by seating a ring around the pipe as the nut is tightened. It is often chosen for quick repairs, service loops, and confined spaces where torch work is impractical. A 3/4 Copper Compression Fitting is well suited for mains, branch lines, and appliance feeds where brazing is not desired.
Parts Of A Compression Union: Body, Ferrule Olive, And Nut
The union body creates the threaded channel that accepts the nut. The ferrule, often called an olive, deforms and seals against the pipe and body when the nut is drawn up. The nut threads onto the body and delivers the compressive force. Proper seating of the ferrule is important for a leak-free joint and for serviceability in the field.
Copper Union Materials: Copper, Brass, Stainless Steel, And Plastics
Brass unions provide ductility and corrosion resistance, making them compatible with copper pipe for water and gas. Stainless steel adds extra strength for high-pressure or high-temperature systems. Copper-to-copper unions offer similar thermal expansion and fit common tubing sizes. Plastic ferrules and fittings, such as acetal or nylon, are installed in low-pressure domestic systems where nonmetallic connections or chemical resistance are useful.
Why Copper-To-Copper Unions Reduce Galvanic Corrosion Risk
When metals match, galvanic corrosion risk decreases because similar alloys share electrochemical properties. A copper-to-copper union or a brass body mated to copper pipe lowers the chance of active corrosion at the joint. When using a 3/4 Compression Fitting Copper, avoid direct contact between copper and carbon steel or other dissimilar metals unless dielectric breaks are used for long-term durability.
Why Use Compression Fittings On Copper Pipes
For copper pipe work, compression fittings give a fast, safe alternative to soldered joints. They remove the need for open flame work, which reduces fire risk around insulation, drywall, framing, or older structures. A Compression Fitting 3/4 provides a reliable seal without heat, making it ideal for retrofit jobs and confined locations.
Installation is usually consistent across many fitting brands. First, slide the nut and then the ferrule. Next, insert the tube fully and hand-tighten before a final wrench turn. A 3/4 Compression Fitting or 3 4 Compression Fitting can be assembled quickly in crawl spaces, behind cabinets, or other tight areas where torch work is not practical.
Serviceability is one of the most useful advantages of compression unions. Many plumbers and technicians choose 3 4 Compression Fittings because the assembly can often be loosened or repositioned without cutting the pipe. Ferrules may need replacement after disassembly, yet the overall joint often remains reusable, saving time during repairs and modifications.
Compression fittings are suitable for a wide range of systems beyond household plumbing. They are used in gas distribution, HVAC refrigeration lines, and instrumentation where leak integrity and ease of maintenance are critical. When a compact, no-flame connection is needed, a Compression Fitting 3/4 or 3/4 Compression Fitting can be a practical choice.
| Feature | Compression Fitting | Soldered Connection |
|---|---|---|
| Heat needed | No | Heat required |
| Installation speed | Fast | Slower |
| Serviceability | Easy to disassemble | Permanent |
| Use in tight spaces | High | Limited |
| Common uses | Plumbing, gas, HVAC, instrumentation | Domestic water, long-term sealed joints |
How To Choose The Right Size And Material
A reliable plumbing joint requires the correct size and material selection. Before buying, confirm both the pipe outside diameter and the fitting designation. Misreading terms such as 3/4 Compression Fitting can result in leaks, poor fit, and expensive repairs.
It is necessary to distinguish between nominal size and outside diameter OD when selecting products. Search for SKU labels such as 3 4 Copper Compression Union or 3/4 Copper Compression Fitting. Correct sizing allows proper ferrule seating on the copper tube.
Common SKU keywords to look for
Retail listings and manufacturer catalogs often list parts under various names. Look for clear labeling and adherence to standards. Common terms include Compression Fitting 3/4 and 3 4 Copper Compression Union. Ensure the product description matches your pipe’s OD or nominal size.
Material selection
Brass is often specified for copper pipe systems because it provides ductility and corrosion resistance. A 3/4 Union Brass or a 3 4 Union Brass suits the needs of most residential and light-commercial applications.
Copper unions are well suited for matching metals, managing thermal expansion, and preventing galvanic action. A 3/4 Compression Fitting Copper provides a homogeneous connection suitable for refrigeration and traditional plumbing.
Stainless steel is selected for applications requiring higher pressure or resistance to aggressive chemicals. Compared with brass and copper, it delivers higher strength and stronger chemical resistance.
When plastic fittings are acceptable
Acetal or nylon compression fittings may be acceptable for low-pressure domestic water lines or situations where non-conductivity is needed. However, they have drawbacks, including lower pressure ratings, lower temperature tolerance, and sensitivity to some chemicals.
Common coupling type comparison
| Coupling Material | Usual Application | Durability | Selection Notes |
|---|---|---|---|
| Brass, including 3/4 Union Brass | Potable systems, gas, and routine plumbing | Strong | Cost-effective, compatible with copper |
| Copper 3/4 Compression Fitting Copper | Plumbing, refrigeration, homogeneous joints | Reliable for standard service | Reduces galvanic risk and matches copper tube |
| Stainless steel fittings | High-pressure, high-temperature, and corrosive-fluid service | Very high | Best for demanding industrial service |
| Plastic, including acetal or nylon | Low-pressure domestic water | Low-medium | Non-conductive, limited temp/chem resistance |
Helpful sizing tip
When encountering product names like 3 4 Brass Compression Coupling or 3/4 Inch Compression Fitting, confirm the listing’s reference to OD or nominal pipe size. Ensure compatibility with manufacturer specifications and approvals from trusted brands like Dixon, if applicable.
Installation Best Practices For A Leak-Free Union
Begin with clean, straight copper tubing. Use a pipe cutter to make a precise cut. Remove burrs with a deburring tool, reamer, or fine sandpaper. A smooth, square end is essential to prevent ferrule damage and ensure a reliable seal when installing 3/4 Compression Fittings.
Assemble components in the correct order. Place the compression nut on the pipe with threads facing outward, followed by the ferrule. Insert the pipe fully into the union body until it bottoms out. This step reduces gaps that can cause leaks when using a 3 4 Brass Compression Coupling or 3/4 Compression Fitting Copper.
First, hand-tighten the nut so the parts align properly. Then, use two wrenches: one to hold the fitting body steady, the other to turn the nut. Follow the manufacturer’s recommended wrench turns past finger-tight. Over-tightening can deform the ferrule or crush the copper tube, which shortens the life of a 3/4 Copper Compression Fitting.
Avoid reusing ferrules. Always fit a new ferrule and nut for each joint. Do not install compression joints where constant vibration or repeated movement occurs. These conditions can loosen fittings like 3/4 Compression Fittings and 3 4 Brass Compression Coupling over time.
Check the pressure and temperature rating for the fitting you choose. Check product datasheets or packaging before installing. After assembly, slowly restore pressure and inspect for leaks. If minor weeping appears, tighten incrementally. Persistent leaks require disassembly and inspection of the ferrule, nut, and pipe end to confirm correct seating.
Maintaining, Replacing, And Troubleshooting Compression Unions
Begin by shutting off the water supply and relieving pressure. Use two wrenches to support the fitting body while turning the compression nut counter-clockwise. If the nut is seized, apply penetrating oil and allow it to soak before trying to remove it.
How to remove an existing compression union safely
Hold the pipe steady with one wrench and turn the nut with another. After the nut loosens, slide the nut and ferrule away from the tube end. If the union is old, back off slowly to avoid sudden leaks or pipe damage.
Choosing between ferrule replacement and full union replacement
Replace the ferrule and nut when the fitting body looks sound and the sleeve shows wear or deformation. Replace the full union if the body threads are corroded, leaks continue after new ferrules are installed, or the assembly no longer meets pressure or material requirements.
Common failure signs: weeping, corrosion, or ferrule damage
Inspect for weeping around the nut and ferrule, green or white corrosion on copper or brass, and ferrules that are crushed, split, or distorted. Vibration may gradually loosen compression unions and cause slow leaks over time.
How to remove a stuck ferrule without damaging copper pipe
Carefully score the ferrule lengthwise with a thin rotary blade or hacksaw, then pry it open and remove it. If available, use a ferrule puller for cleaner removal. If the tube is nicked, flattened, or damaged, cut the end square again, deburr it, smooth it, and reinstall with a new ferrule and nut.
Longevity comparison: compression unions and soldered joints
Soldered joints generally deliver a more permanent seal and often last longer under static conditions. Compression unions are easier to service and require no flame, making them useful for repairs and confined spaces. Where vibration or long-term mechanical stress is present, soldered joints often outperform compression fittings.
| Part | Serviceability | Expected Service Life | Recommended Use |
|---|---|---|---|
| 3 4 Compression Union Brass | Can be disassembled; ferrule may need replacement after several cycles | Typically 5–15 years, depending on water quality and movement | Repairs, tight spaces, no-flame requirements |
| 3/4 Union Brass | Moderately serviceable when nut and ferrule are replaced | Often 5–15 years under normal use | General plumbing where service access is needed |
| 3/4 compression connector | Reusable short term; ferrule replacement recommended after repeated cycles | Material-dependent, commonly 7–20 years for brass | Quick repairs and installations without solder |
| 3/4 inch compression fitting | Easy to fit and remove, but reused ferrules may be damaged | Varies by conditions and may shorten under movement | Residential service work and confined installations |
| Soldered comparison for 3/4 Compression Fittings | Permanent once soldered, but very durable | Can exceed 20 years with good installation | Permanent pipe runs and high-stress installations |
When buying spare parts, compare compatible 3/4 Compression Fittings and 3/4 Inch Compression Fitting components from manufacturers such as Mueller, Nibco, or Watts. Before reinstalling any replacement ferrule or nut, always verify material compatibility and pressure ratings.
Conclusion
Copper compression unions provide a practical way to join copper tubing without soldering. The union’s body, ferrule, and nut produce a tight seal when properly sized and installed. This makes them ideal for situations where heat is not feasible or where serviceability is a priority.
When choosing materials, match the fitting to the application: brass or copper for potable systems and lower galvanic risk, stainless steel for harsh or high-stress service, and approved plastics where they are permitted. A 3/4 Compression Fitting or 3/4 Copper Compression Fitting can perform well when the pipe is cut square, the ferrule is seated properly, and tightening follows manufacturer guidance.
Maintenance is manageable: check for signs of weepage or corrosion, replace ferrules as needed, and avoid over-tightening to prolong the union’s life. For specific parts like a 3 4 Copper Compression Union or a 3 4 Union Brass, verify stock and specifications with Installation Parts Supply. This supports compatibility and correct installation instructions.
