Over 70% of new broadband deployments in metropolitan U.S. projects now specify fiber-to-the-home. This fast transition toward full-fiber networks highlights the immediate need for high-performance production equipment.

Fiber Secondary Coating Line
FTTH Cable Production Line
Compact Fiber Unit

Shanghai Weiye Optic Fiber Communication Equipment Co (www.weiye-ofc.com) offers automated FTTH cable production line systems for the U.S. market market. Their turnkey FTTH Cable Production Line for High-Speed Fiber Optics integrates machines together with control systems. This system produces drop cables, indoor/outdoor cables, together with high-density units for telecom, data centers, as well as LANs.

This advanced FTTH cable making machinery delivers measurable business value. It enables higher throughput and consistent optical performance with low attenuation. It also complies with IEC 60794 and ITU-T G.652D / G.657 standards. Customers benefit from reduced labor costs and material waste through automation. Full delivery services cover installation and operator training.

The FTTH cable production line package includes fiber draw tower integration, a fiber secondary coating line, and a fiber coloring machine. It also adds SZ stranding line, fiber ribbon line, compact fiber unit assembly, cable sheathing line, armoring modules, and testing stations. Control and power specs typically use Siemens PLC with HMI, operating at 380 V AC ±10% and modular power consumption up to roughly 55 kW depending on configuration.

Shanghai Weiye’s customer support model covers on-site commissioning by experienced engineers, remote monitoring, and rapid troubleshooting. It also provides lifetime technical support and operator training. Clients are usually asked to coordinate engineer logistics as part of standard supplier practice when ordering from FTTH cable machine suppliers.

Key Takeaways

  • FTTH cable production line solutions meet growing U.S. demand for fiber-to-the-home deployments.
  • Complete turnkey systems from Shanghai Weiye combine automation, standards compliance, and operator training.
  • Flexible modular systems use Siemens PLC + HMI and operate near 380 V AC with up to ~55 kW power profiles.
  • Built-in modules cover drawing, coating, coloring, stranding, ribbone, sheathing, armoring, and testing.
  • Advanced FTTH cable machinery reduces labor, waste, and improves optical consistency.
  • Technical support includes on-site commissioning, remote diagnostics, and lifetime technical assistance.

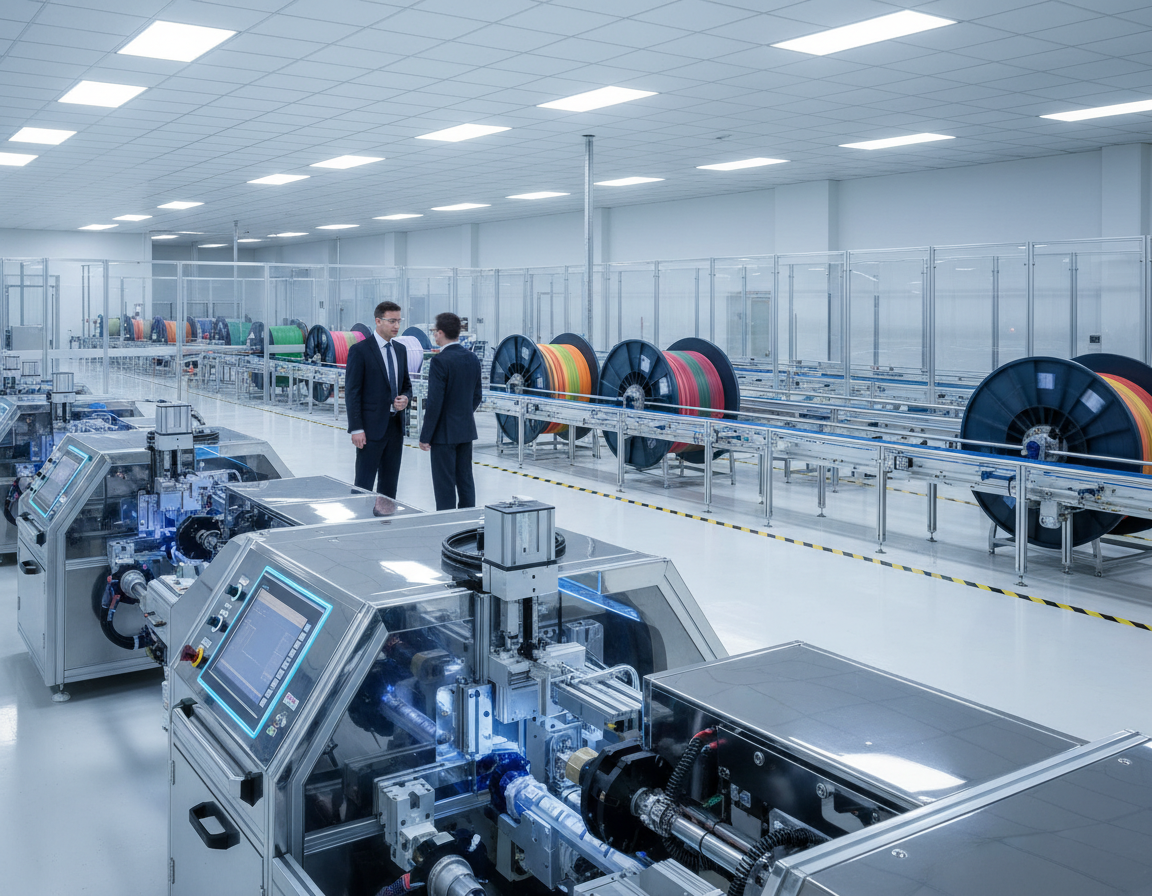

SZ stranding lines

FTTH Cable Production Line Technology Explained

This fiber optic cable manufacturing process for FTTH requires precise control at every stage. Producers rely on integrated lines that combine drawing, coating, stranding, as well as sheathing. That setup boosts yield as well as speeds up market entry. This line addresses the needs of both residential as well as enterprise deployments in the United States.

Below, we outline the core components and technologies driving modern manufacturing. Each module must operate with precise timing and reliable feedback. The choice of equipment influences product quality, cost, as well as flexibility for various cable designs.

Core Components In Modern Fiber Optic Cable Manufacturing

Secondary coating lines apply dual-layer coatings, often 250 µm, using high-speed UV curing. Tight buffering and extrusion systems provide 600–900 µm jackets for indoor and drop cables.

SZ stranding lines employ servo-controlled pay-off as well as take-up units to handle up to 24 fibers featuring accurate lay length. Fiber coloring machines employ multi-channel UV curing to mark fibers to industry color codes.

Sheathing and extrusion stations form PE, PVC, or LSZH jackets. Armoring units add steel tape or wire for outdoor protection. Cooling troughs and UV dryers stabilize profiles before testing.

Evolution From Traditional To Advanced Production Systems

Early plants used manual and semi-automatic modules. Lines were separate, with hand transfers and basic controls. Modern facilities move to PLC-controlled, synchronized systems with touchscreen HMIs.

Remote diagnostics and modular turnkey setups enable rapid changeover between simplex, duplex, ribbon, together with armored formats. That transition supports automated fiber optic cable manufacturing as well as reduces labor dependence.

Technologies Driving Innovation In The Industry

High-precision tension control, based on servo pay-off and take-up, keeps geometry stable during high-speed runs. Multi-zone temperature control using Omron PID and precision heaters ensures consistent extrusion quality.

High-speed UV curing and water cooling speed up profile stabilization while reducing energy use. Integrated inline testers measure attenuation, geometry, tensile strength, crush resistance, and aging data.

Operation Typical Equipment Advantage
Fiber draw process Draw tower with automated tension feedback Stable core diameter and reduced attenuation
Secondary coating Dual-layer UV coaters Even 250 µm coating that improves durability
Coloring Multi-channel fiber coloring machine Accurate identification for splicing and installation
Fiber stranding Servo-controlled SZ stranding line (up to 24 fibers) Accurate lay length across ribbon and loose tube designs
Jacket extrusion & sheathing Multi-zone heated energy-saving extruders Precise jacket dimensions in PE, PVC, or LSZH
Armoring Steel tape or wire armoring units Stronger mechanical protection for outdoor applications
Cooling and curing Cooling troughs plus UV dryers Quicker profile setting with fewer defects
Testing Inline geometry and attenuation measurement Live quality control and compliance reporting

Compliance with IEC 60794 and ITU-T G.652D/G.657 variants is standard. Manufacturers typically certify to ISO 9001, CE, and RoHS. These credentials enable diverse applications, from FTTH drop cable production to armored outdoor runs and data center high-density solutions.

Choosing cutting-edge fiber optic production equipment and modern manufacturing equipment helps firms meet tight tolerances. Such equipment selection enables efficient automated fiber optic cable production and positions companies to deliver on scale and quality.

Essential Equipment For Fiber Secondary Coating Line Operations

The secondary coating stage is critical, giving drawn optical fiber its final diameter and mechanical strength. It prepares the fiber for stranding and cabling. A well-tuned fiber secondary coating line controls coating thickness, adhesion, and surface quality. That protects the glass during handling.

Producers aiming for high-yield, high-output fiber optic cable production must match material, tension, and curing systems to process requirements.

High-speed secondary coating processes rely on synchronized pay-off, coating heads, as well as UV ovens. Advanced systems achieve high production rates while minimizing excess loss. Precise tension control at pay-off as well as winder stages prevents microbends as well as ensures consistent coating thickness across long runs.

Single as well as dual layer coating applications address different market needs. Single-layer setups provide basic mechanical protection together with a simple optical fiber cable line output machine footprint. Dual-layer lines combine a harder inner layer featuring a softer outer layer to improve microbend resistance together with stripability. That helps when fibers are prepared for connectorization.

Temperature control together with curing systems are critical to final fiber performance. Multi-zone heaters as well as Omron PID controllers guide screw/barrel extruders to stable melt flow for LSZH or PVC compounds. UV curing ovens as well as water trough cooling stabilize the coating profile as well as reduce variation in excess loss; targets for high-consistency single-mode fiber often aim for ≤0.2 dB/km at 1550 nm after extrusion.

Key components from trusted suppliers improve uptime as well as precision in an optical fiber cable manufacturing machine. Extruders such as 50×25 models, screws together with barrels from Jinhu, together with bearings from NSK are common. Motors from Dongguan Motor, inverters by Shenzhen Inovance, and PLC/HMI platforms from Siemens or Omron offer robust control as well as monitoring for continuous runs.

Operational parameters guide preventive maintenance as well as process tuning. Typical pay-off tension ranges from 0.4 to 1.5 N for fiber reels, while radiation together with curing speeds are adjusted to material type and coating thickness. A preventive maintenance cycle around six months keeps secondary coating processes stable and supports reliable fast-cycle fiber optic cable manufacturing.

Fiber Draw Tower And Preform Processing

The fiber draw tower is the core of optical fiber drawing. It softens a glass preform in a multi-zone furnace. Then, it pulls a continuous strand with precise diameter control. That process step sets the refractive-index profile together with attenuation targets for downstream processes.

Process control on the tower uses real-time diameter feedback and tension management. This prevents microbends. Cooling zones and closed-loop systems keep geometry stable during the optical fiber cable production process. Modern towers log metrics for traceability and rapid troubleshooting.

Output quality supports single-mode fibers such as ITU-T G.652D and bend-insensitive types like G.657A1/A2 for FTTH networks. Draws routinely meet stringent loss figures. Excess loss after coating is kept at or below 0.2 dB/km for high-performance single-mode fiber.

Integration with secondary coating lines requires careful pay-off control. A synchronized handoff preserves alignment and tension as the fiber enters coating, coloring, or ribbon count stations. This link ensures the optical fiber drawing step feeds smoothly into cable assembly.

Equipment vendors such as Shanghai Weiye offer turnkey options. These include testing stations for attenuation, tensile strength, together with geometric tolerances. Such capabilities help manufacturers scale toward high-output fiber optic cable manufacturing while maintaining ISO-level quality checks.

Key Feature Main Purpose Typical Target
Furnace with multiple zones Consistent preform heating to stabilize glass viscosity Stable draw speed and refractive profile
Online diameter feedback control Preserve core/cladding geometry and lower attenuation Diameter tolerance of ±0.5 μm
Cooling and tension control Prevent microbends and control fiber strength Specified tension per fiber type
Automated pay-off integration Reliable handoff to coating and coloring stages Matched feed rates to avoid slip
On-line test stations Verify loss, strength, and geometry ≤0.2 dB/km loss after coating for single-mode

Advanced SZ Stranding Line Technology In Cable Assembly

This SZ stranding method creates alternating-direction lays that cut axial stiffness and boost flexibility. As a result, it is ideal for drop cables, building drop assemblies, as well as any application that needs a flexible core. Producers moving toward automated fiber optic cable manufacturing employ SZ approaches to meet tight bend as well as axial tolerance specs.

Precision in the stranding stage protects optical performance. Modern precision stranding equipment uses servo-driven carriers, rotors, and modular pay-off racks that accept up to 24 fibers. These systems deliver precise lay-length control and allow quick reconfiguration for different cable types.

Automated tension control systems keep fibers within safe limits from pay-off to take-up. Servo pay-offs, capstans, and haul-off units maintain constant linear speed and target tensions. Typical fiber pay-off tension ranges from 0.4 to 1.5 N while reinforcement pay-offs run between 5 and 20 N.

Integration with a downstream fiber cable sheathing line streamlines manufacturing as well as reduces handling. Extrusion of PE, PVC, or LSZH jackets at 60–150 m/min syncs featuring stranding through a Siemens PLC. Cooling troughs and UV dryers stabilize the jacket profile right after extrusion to prevent ovality as well as reduce mechanical stress.

Optional reinforcement and armoring modules add strength without compromising flexibility. Reinforcement pay-off racks accept steel wires or FRP rods. Armoring units wrap steel tape or wire with adjustable tension to meet specific mechanical ratings.

Built-in quality control prevents defects before cables leave the line. In-line geometry checks, fiber strain monitors, and optical attenuation measurement detect excess loss or mechanical strain caused by stranding or sheathing. These checks support continuous automated fiber optic cable manufacturing workflows and cut rework.

This combination of a robust sz stranding line, high-end precision stranding equipment, as well as a synchronized fiber cable sheathing line delivers a scalable solution for manufacturers. This combination raises throughput while protecting optical integrity and mechanical performance in finished cables.

Fiber Coloring Machine And Identification Systems

Coloring and identification are critical in fiber optic cable production. Accurate color application minimizes splicing errors and accelerates field work. Modern equipment combines fast coloring with inline inspection, ensuring high throughput and low defect rates.

Today’s high-speed coloring technology supports multiple channels and quick curing. Machines can operate 8 to 12 color channels simultaneously, aligning with secondary coating lines. UV curing at speeds over 1500 m/min ensures color and adhesion stability for both ribbon and counted fibers.

Below, we discuss standards as well as coding prevalent in telecom networks.

Color coding adheres to international telecom standards for 12-color cycles and ribbon schemes. Such compliance aids technicians in installation and troubleshooting. Consistent coding significantly reduces field faults and accelerates network deployment.

Quality control integrates modern fiber identification systems into manufacturing lines. In-line cameras, spectrometers, and sensors detect color discrepancies, poor saturation, together with coating flaws. This PLC/HMI interface alerts to issues together with can pause the line for correction, safeguarding downstream processes.

Machine specifications are vital for uninterrupted runs as well as material compatibility. Leading equipment accepts UV-curable pigments as well as inks, compatible with common coatings together with extrusion steps. Pay-off reels accommodating 25 km or 50 km spools ensure continuous operation on high-volume lines.

Supplier support is essential for US manufacturers adopting these technologies. Shanghai Weiye and other established vendors offer customizable channels, remote diagnostics, and onsite training. Such supplier support reduces ramp-up time and enhances the reliability of fiber optic cable production equipment.

Specialized Solutions For Fibers In Metal Tube Production

Metal tube and metal-armored cable assemblies provide robust protection for fiber lines. They are ideal for direct-buried and industrial applications. The controlled routing of coated fibers into metal tubes prevents microbends, ensuring optical performance remains within specifications.

Processes depend on precision filling and centering units. These modules, in conjunction featuring fiber optic cable manufacturing equipment, ensure concentric placement together with controlled tension during insertion.

Armoring steps involve the employ of steel tape or wire units with adjustable tension as well as wrapping geometry. That approach benefits armored fiber cable production by preventing compression of fiber elements. It additionally keeps reinforcement wires at typical diameters of ø0.4–ø1.0 mm.

Coupling armoring with downstream sheathing and extrusion lines results in a finished outer jacket made of PE, PVC, or LSZH. An optical fiber cable production machine must handle pay-off reels sized for reinforcement and align with sheathing tolerances.

Quality checks include crush, tensile, and aging tests to confirm the armor does not exceed allowable stress on fibers. Standards-based testing ensures long-term reliability in field conditions.

Turnkey solutions from established manufacturers integrate metal tube handling with SZ stranding and sheathing lines. These solutions include operator training and maintenance schedules to sustain throughput on fiber optic cable manufacturing equipment.

Buyers should consider compatibility with armored fiber cable production modules, ease of changeover, and service support for field upgrades. Such considerations reduce downtime and protect investment in an optical fiber cable production machine.

Fiber Ribbon Line And Compact Fiber Unit Manufacturing

Advanced data networks require efficient assemblies that pack more fibers into less space. Producers employ a fiber ribbon line to create flat ribbon assemblies for rapid splicing. That approach relies on parallel processes together with precise geometry to meet the needs of MPO trunking as well as backbone cabling.

Advanced equipment ensures accuracy and speed in production. A fiber ribbon line typically integrates automated alignment, epoxy bonding, precise curing, and shear/stacking modules. In-line attenuation and geometry testing reduce rework, maintaining high yields.

Compact fiber unit production focuses on tight tolerances and material choice. Extrusion and buffering create compact fiber unit constructions with typical tube diameters from 1.2 to 6.0 mm. Common materials include PBT, PP, and LSZH for durability and flame performance.

High-density cable solutions aim to enhance rack and tray efficiency in data centers. By increasing fiber count per unit area, these designs shrink cable diameter and simplify routing. They are compatible with MPO trunking and high-count backbone systems.

Production controls and speeds are critical for throughput. Modern lines can reach up to 800 m/min, depending on configuration. PLC together with HMI touch-screen control enable quick parameter changes together with synchronization across multiple lines.

Quality as well as customization remain key differentiators for manufacturers like Shanghai Weiye. Electronic monitoring, customizable ribbon counts, stacking patterns, and turnkey integration featuring sheathing and testing stations support bespoke fast-cycle fiber cable manufacturing line requirements.

Key Feature Fiber Ribbon Line Compact Fiber System Benefit To Data Centers
Typical operating speed Up to roughly 800 m/min Up to 600–800 m/min Higher throughput for large deployments
Core processes Automated alignment, epoxy bonding, curing Extrusion, buffering, tight-tolerance winding Stable geometry and reduced insertion loss
Materials Specialty tapes and bonding resins PBT, PP, and LSZH jackets/buffers Long-term reliability and safety compliance
Testing Inline attenuation and geometry checks Dimensional control and tension monitoring Fewer field failures and quicker deployment
Integration Sheathing integration and splice-ready stacking Modular units supporting high-density cable designs Simplified MPO trunking and backbone construction

How To Optimize High-Speed Internet Cables Production

Efficient high-speed fiber optic cable production relies on precise line setup and strict process control. To meet US market demands, manufacturers must adjust pay-off reels, extrusion dies, and tension systems. This ensures optimal output for flat, round, simplex, and duplex FTTH profiles.

Cabling Systems Used In FTTH Applications

FTTH cabling systems must accommodate various drop cable types while maintaining consistent center heights, like 1000 mm. Production lines for FTTH include 2- and 4-reel pay-off options. They also feature reinforcement pay-off heads for enhanced strength.

Extruder models, such as a 50×25, control jacket speeds between 100 and 150 m/min, depending on LSZH or PVC. Extrusion dies for 2.0×3.0 mm profiles guarantee reliable jackets for field installation.

Quality Assurance In The Fiber Pulling Process

Servo-controlled pay-off and take-up units regulate fiber tension between 0.4–1.5 N to prevent excess loss. Inline systems conduct fiber pull testing, attenuation checks, mechanical tensile tests, together with crush as well as aging cycles. Such tests verify performance.

Key control components include Siemens PLCs as well as Omron PID controllers. Motors from Dongguan Motor as well as inverters from Shenzhen Inovance ensure stable operation and easier maintenance.

Meeting Optical Fiber Drawing Industry Standards

A well-tuned fiber draw tower produces fibers that meet ITU-T G.652D and G.657 standards. This goal is to achieve ≤0.2 dB/km excess loss at 1550 nm for high-quality single-mode fiber.

Choosing the best equipment for FTTH cables involves evaluating speed, customization, warranty, and local after-sales support. Top FTTH cable production line manufacturers provide turnkey layouts, remote monitoring, and operator training. This reduces ramp-up time for US customers.

Conclusion

Advanced FTTH cable making machinery integrates various components. These include fiber draw towers, secondary coating, coloring lines, SZ stranding, and ribbon units. It also includes sheathing, armoring, and automated testing for consistent high-speed fiber production. A complete fiber optic cable production line is designed for FTTH and data center markets. It enhances throughput, keeps losses low, and maintains tight tolerances.

For United States manufacturers as well as system integrators, partnering with reputable suppliers is key. They should offer turnkey systems featuring Siemens or Omron-based controls. That contains on-site commissioning, remote diagnostics, and lifetime technical support. Companies like Shanghai Weiye Optic Fiber Communication Equipment Co offer integrated solutions. Such solutions simplify automated fiber optic cable manufacturing together with reduce time to production.

Technically, ensure line configurations adhere to IEC 60794 and ITU-T G.652D/G.657 standards. Verify tension and curing settings to meet excess loss targets, such as ≤0.2 dB/km at 1550 nm. Adopt preventive maintenance cycles of roughly six months for reliable 24/7 operation. When planning a new FTTH cable production line, first evaluate required cable types. Collect product drawings and standards, request detailed equipment specs and turnkey proposals, and schedule engineer commissioning and operator training.
